نمایشگر HMI سایز 7.0 اینچ Nextion NX8048K070 مدل پیشرفته
The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock. The enhanced Nextion series has 7 size covers from generic 2.4'' to 7.0''.

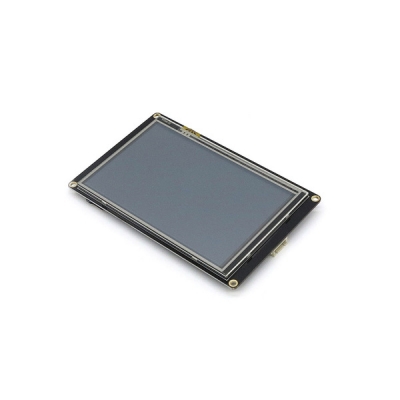

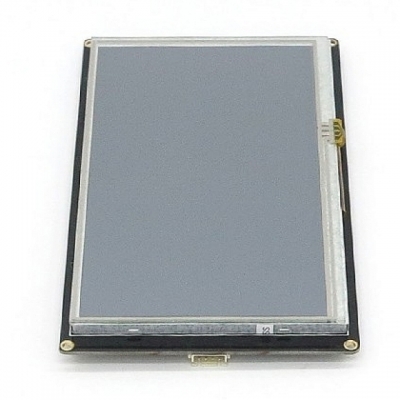

Nextion Enhanced NX8048K070 is a powerful 7.0'' HMI TFT display, with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM. With GPIO supported, now customers can use Nextion to control external devices.
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

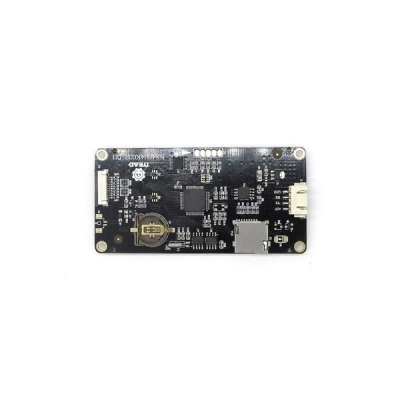

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It's easy to adapt Nextion family HMI to existing projects- users just need to provide it a UART.
Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image on how to use it.
- Visual Area: 154.08mm(L)×85.92mm(W)
- Layout size: 181(L)×108(W)×9.3(H)
- Touch type: Resistive
- Backlight lifetime (Average): >30,000 Hours
- Net Weight: 268 g
- Recommended power supply: 5V 2A
1× 7.0" Nextion Enhanced HMI Display
1× power supply test board
1× 4-pin grove cable
Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.
For technical support, please open a ticket on Nextion Forum.
