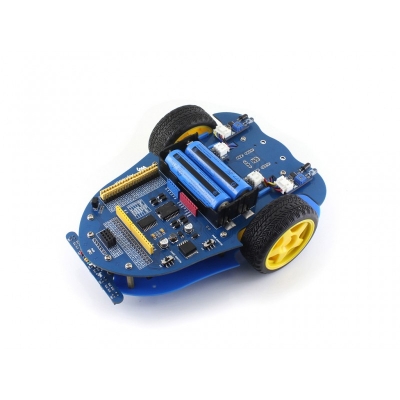

کیت ربات AlphaBot-Pi طراحی شده برای کنترلر رزبری پای 3

کیت ربات AlphaBot-Pi طراحی شده برای کنترلر رزبری پای 3

مدل: (DEV-00249)
وضعیت: موجود
قیمت:
1,101,500تومان

Note: Raspberry Pi is NOT included.

Overview

This kit comes with AlphaBot robotic platform (line tracking, obstacle avoidance, speed measuring, IR control), and a camera (with servo and 2 DOF pan head).

With modules in the kit, you can fast get started with robotic development like line tracking, obstacle avoidance, IR remote control, and video monitoring via network, etc. What's more, thanks to the rich Raspberry Pi open source resources, and the modular design of AlphaBot, you'll learn how to extend and refit, and finally build your own Raspberry Pi robot.

AlphaBot Features

  • Raspberry Pi/Arduino interfaces, works with either one separately, or both
  • Arduino extend header, supports Arduino shields
  • Modular design, plug-and-play modules like line tracking, obstacle avoidance, speed measuring, etc. eliminating the trouble of connecting mess wires.
  • LM298P motor driver with diode protection circuit, more safety
  • LM2596 voltage regular, provides stable 5V power to the Raspberry Pi/Arduino
  • TLC1543 AD acquisition chip, allows the Pi to use analog sensors

What's on the AlphaBot Mainboard

Raspberry Arduino Robot AlphaBot on board resource

  1. Raspberry Pi interface: for connecting Raspberry Pi
  2. Arduino interface: for connecting Arduino
  3. Motor interface
  4. Ultrasonic module interface
  5. Servo module interface
  6. Obstacle avoidance module interface
  7. Speed measuring interface
  8. Battery holder: supports 18650 batteries
  9. Reserved power input (not soldered): for connecting other external power supply
  10. Arduino expansion header: for connecting Arduino shields
  11. UART interface: for connecting Bluetooth module, to control the robot remotely via Bluetooth
  12. SPI interface: for connecting NRF24L01 wireless module
  13. Line tracking module interface
  14. TLC1543: 10-bit AD acquisition chip, allows the Pi to use analog sensors
  15. LM298P: dual H bridge motor driver chip, up to 2A current
  16. Anti-reverse diode
  17. Power switch
  18. LM2596: 5V regulator
  19. Power indicator
  20. UART switch: turn on to enable serial communication between Raspberry Pi and Arduino
  21. IR receiver: control the robot remotely via infrared
  22. Raspberry Pi/Arduino selection: select the Raspberry Pi or Arduino to control the robot peripherals

Photos

Raspberry Arduino Robot AlphaBot Raspberry Arduino Robot AlphaBot Raspberry Arduino Robot AlphaBot

Raspberry Arduino Robot AlphaBot
AlphaBot mainboard
Raspberry Arduino Robot AlphaBot
AlphaBot mainboard back view
Raspberry Arduino Robot AlphaBot
AlphaBot mainboard
Raspberry Arduino Robot AlphaBot
AlphaBot mainboard back view
Raspberry Arduino Robot AlphaBot
AlphaBot mobile robot
Raspberry Arduino Robot AlphaBot
AlphaBot mobile robot back view
Raspberry Arduino Robot AlphaBot
AlphaBot mobile robot
Raspberry Arduino Robot AlphaBot
AlphaBot mobile robot
Raspberry Arduino Robot AlphaBot
AlphaBot multi-function robot
Raspberry Arduino Robot AlphaBot
AlphaBot multi-function robot
Raspberry Arduino Robot AlphaBot
AlphaBot multi-function robot
Raspberry Arduino Robot AlphaBot
AlphaBot multi-function robot
Raspberry Arduino Robot AlphaBot
AlphaBot + Raspberry Pi
Raspberry Arduino Robot AlphaBot
AlphaBot-Pi Raspberry Pi robot
Raspberry Arduino Robot AlphaBot
AlphaBot-Pi Raspberry Pi robot
Raspberry Arduino Robot AlphaBot
AlphaBot-Pi Raspberry Pi robot


Examples

Raspberry Arduino Robot AlphaBot
Infrared line tracking robot
Raspberry Arduino Robot AlphaBot
Infrared obstacle avoidance robot
Raspberry Arduino Robot AlphaBot
Ultrasonic obstacle avoidance robot
Raspberry Arduino Robot AlphaBot
Infrared/Bluetooth remote control robot
Raspberry Arduino Robot AlphaBot
Video monitoring robot



Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the price.
